2SA1566 Silicon PNP Transistor

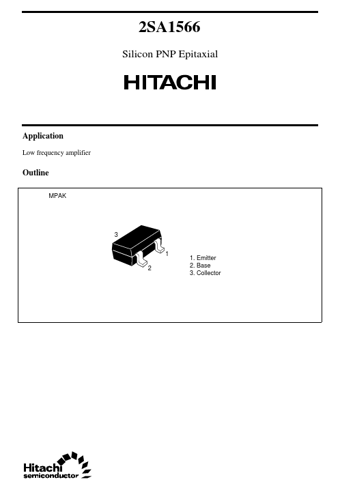

2SA1566 Silicon PNP Epitaxial Application Low frequency amplifier Outline MPAK 3 1 2 1. Emitter 2. Base 3. Collector 2SA1566 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 120 120 5 100 150 150 55 to +150 Unit V V V mA mW °C °C Electrical Chara.
