2SA1052 - Silicon PNP Epitaxial Transistor

Hitachi Semiconductor

Datasheet Details

Part number	2SA1052
Manufacturer	Hitachi Semiconductor
File Size	24.17 KB
Description	Silicon PNP Epitaxial Transistor
Datasheet	2SA1052 Datasheet
Additional preview pages of the 2SA1052 datasheet.

📁 Similar Datasheet

2SA1050 - Silicon POwer Transistors (SavantIC)
2SA1050 - POWER TRANSISTOR (Inchange Semiconductor)
2SA1051 - POWER TRANSISTOR (Inchange Semiconductor)
2SA100 - Ge PNP Drift Transistor (ETC)
2SA1001 - Silicon PNP Power Transistor (Inchange Semiconductor)
2SA1002 - Silicon PNP Power Transistor (INCHANGE)
2SA1003 - Silicon PNP Power Transistor (Inchange Semiconductor)
2SA1006 - PNP/NPN TRANSISTOR (NEC)
2SA1006 - Silicon POwer Transistors (SavantIC)
2SA1006A - PNP/NPN TRANSISTOR (NEC)

Other Datasheets by Hitachi Semiconductor

2SA1025 - Silicon PNP Epitaxial Transistor
2SA1029 - Silicon PNP Epitaxial Transistor
2SA1030 - Silicon PNP Epitaxial Transistor
2SA1031 - Silicon PNP Epitaxial Transistor
2SA1032 - Silicon PNP Epitaxial Transistor
2SA1081 - Silicon PNP Epitaxial Transistor
2SA1082 - Silicon PNP Transistor
2SA1083 - Silicon PNP Transistor

Full PDF Text Transcription

Click to expand full text

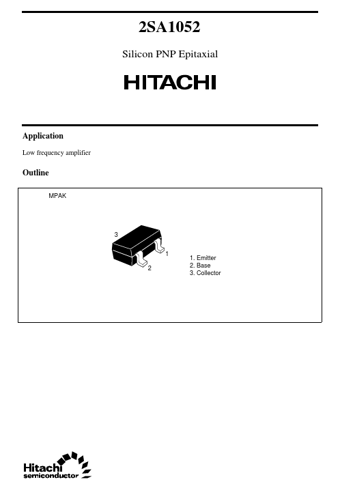

2SA1052 Silicon PNP Epitaxial Application Low frequency amplifier Outline MPAK 3 1 2 1. Emitter 2. Base 3. Collector 2SA1052 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Emitter current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC IE PC Tj Tstg Ratings –30 –30 –5 –100 100 150 150 –55 to +150 Unit V V V mA mA mW °C °C Electrical Characteristics (Ta = 25°C) Item Collector to base breakdown voltage Symbol V(BR)CBO Min –30 –30 –5 — — 1 Typ — — — — — — — — Max — — — –0.5 –0.5 500 –0.2 –0.

Published: Mar 22, 2005 |
