2SB740 Datasheet - Hitachi Semiconductor

2SB740 PNP Transistor

2SB740 Silicon PNP Epitaxial Application Low frequency power amplifier Complementary pair with 2SD789 Outline TO-92MOD 1. Emitter 2. Collector 3. Base 3 2 1 2SB740 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 70 50 6 1 0.9 150

2SB740_HitachiSemiconductor.pdf

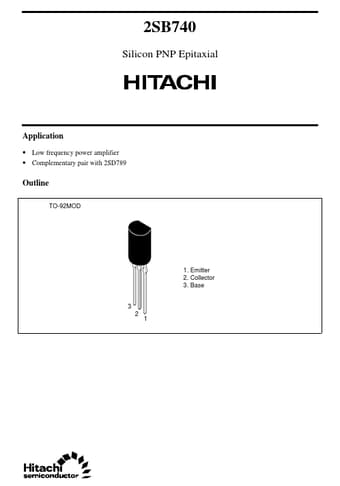

Preview of 2SB740 PDF
2SB740 Datasheet Preview Page 2 2SB740 Datasheet Preview Page 3

Datasheet Details

Part number:

2SB740

Manufacturer:

Hitachi Semiconductor

File Size:

30.30 KB

Description:

Pnp transistor.
