2SB743 - PNP Transistor

2SB743 Description

isc Silicon PNP Power Transistor INCHANGE Semiconductor 2SB743 .
Collector-Emitter BreakdownVoltage- : V(BR)CEO= -30V(Min. Low Collector to Emitter Saturation Voltage : VCE(sat)= -2.

2SB743 Applications

* Designed for audio frequency power amplifier and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -40 V VCEO Collector-Emitter Voltage -30 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -

📥 Download Datasheet

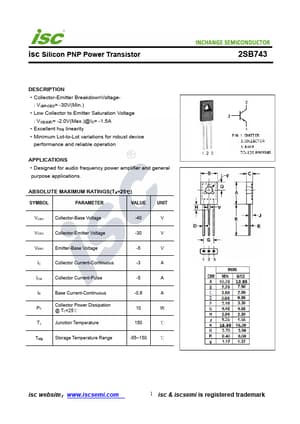

Preview of 2SB743 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB743
Manufacturer
INCHANGE
File Size
179.66 KB
Datasheet
2SB743-INCHANGE.pdf
Description
PNP Transistor
