2SC1515K - Silicon NPN Transistor

📥 Download Datasheet

Datasheet preview – 2SC1515K

Datasheet Details

Part number 2SC1515K
Manufacturer Hitachi Semiconductor
File Size 28.39 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC1515K Datasheet
Additional preview pages of the 2SC1515K datasheet.

📁 Similar Datasheet

  • 2SC1514 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1516 - NPN Transistor (INCHANGE)
  • 2SC1516 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1518 - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SC1501 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1504 - NPN Transistor (INCHANGE)
  • 2SC1504 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1505 - Silicon Power Transistor (NEC)
  • 2SC1505 - NPN Transistor (INCHANGE)
  • 2SC1506 - NPN Silicon Transistor (NEC)
Other Datasheets by Hitachi Semiconductor

Full PDF Text Transcription

Click to expand full text

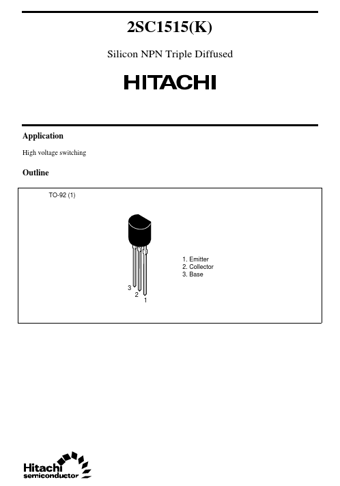

2SC1515(K) Silicon NPN Triple Diffused Application High voltage switching Outline TO-92 (1) 1. Emitter 2. Collector 3. Base 3 2 1 2SC1515 (K) Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Symbol VCBO VCES VCEO Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature VEBO IC PC Tj Tstg Ratings 200 200 150 5 50 200 150 –55 to +150 Unit V V V V mA mW °C °C Electrical Characteristics (Ta = 25°C) Item Symbol Min 200 150 5 — 30 — — 60 — Typ — — — — — — — — — Max — — — 0.1 300 1.0 1.
