2SC4196 Silicon NPN Transistor

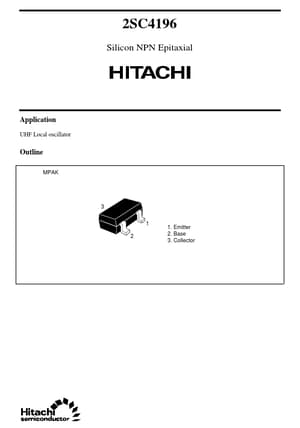

2SC4196 Silicon NPN Epitaxial Application UHF Local oscillator Outline MPAK 3 1 2 1. Emitter 2. Base 3. Collector 2SC4196 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 25 15 3 50 150 150 55 to +150 Unit V V V mA mW °C °C Electrical Characteristics (Ta = 25°C) Item Collector to b.
