2SD669 Silicon NPN Transistor

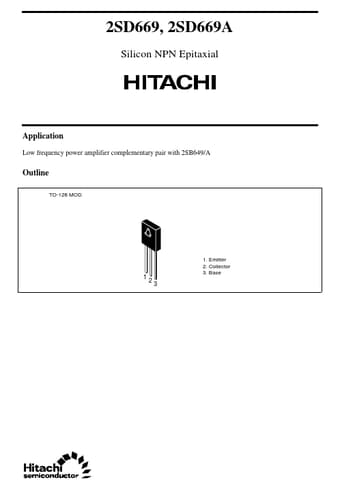

2SD669, 2SD669A Silicon NPN Epitaxial Application Low frequency power amplifier complementary pair with 2SB649/A Outline TO-126 MOD 1 1. Emitter 2. Collector 3. Base 2 3 2SD669, 2SD669A Absolute Maximum Ratings (Ta = 25°C) Ratings Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Symbol VCBO VCEO VEBO IC I C(peak) PC PC Junction temperature Storage temperature Note: 1. Value at TC .
