2SD669AXD Datasheet - TAITRON

SMD Power Transistor

2SD669AXD Features

* Designed for general purpose power applications

* Rugged and reliable

* RoHS compliance D-PACK (TO-252) Mechanical Data Case: Terminals: Weight: D-PACK(TO-252), Plastic Package Solderable per MIL-STD-202G, Method 208 0.3 grams Maximum Ratings (T Ambient=25ºC unless note

2SD669AXD General Description

Value VCEO Collector-Emitter Voltage 2SD669XD 2SD669AXD 120 160 VEBO IC ICP PD TJ, TSTG Emitter-Base Voltage Collector Current Continuous Collector Current Peak Power Dissipation at TC=25°C Operating and Storage Junction Temperature Range 5 1.5 3 2 -40 to +150 TAITRON COMPONENTS INCORPORATE.

2SD669AXD Datasheet (582.34 KB)

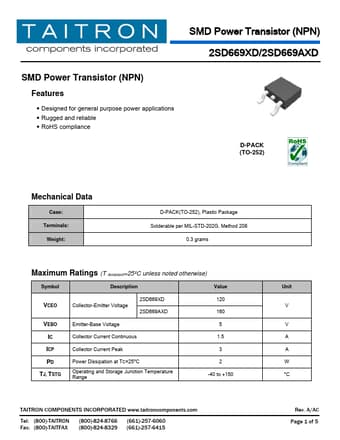

Preview of 2SD669AXD PDF

Datasheet Details

Part number:

2SD669AXD

Manufacturer:

TAITRON

File Size:

582.34 KB

Description:

Smd power transistor.
