2SK1297 Silicon N-Channel MOS FET

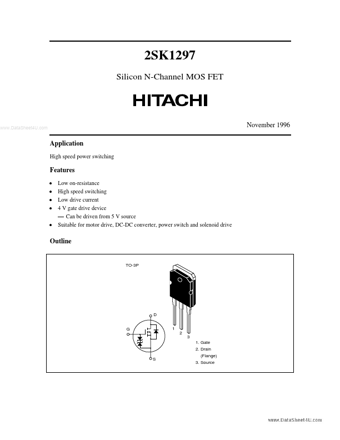

📥 Download Datasheet  Datasheet Preview Page 1

Description

2SK1297 Silicon N-Channel MOS FET www.DataSheet4U.com November 1996 Application High speed power switching .

📥 Download Datasheet

Preview of 2SK1297 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2SK1297
Manufacturer
Hitachi Semiconductor
File Size
78.10 KB
Datasheet
2SK1297_HitachiSemiconductor.pdf
Description
Silicon N-Channel MOS FET

Features

* x x x x x Low on-resistance High speed switching Low drive current 4 V gate drive device  Can be driven from 5 V source Suitable for motor drive, DC-DC converter, power switch and solenoid drive Outline TO-3P D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source S 2SK1297 Absolute Maximum Rati

Applications

* based on the examples described herein. 5. No license is granted by implication or otherwise under any patents or other rights of any third party or Hitachi, Ltd. 6. MEDICAL APPLICATIONS: Hitachi’s products are not authorized for use in MEDICAL APPLICATIONS without the written consent of the appropr
