2SK1566, Silicon N-Channel MOSFET

2SK1566, 2SK1567 Silicon N-Channel MOS FET Application High speed power switching .

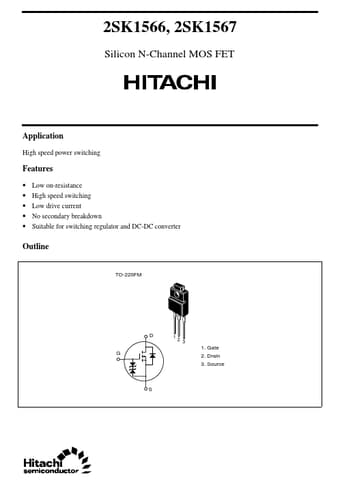

datasheet Preview Page 1 from Datasheet4u.com

2SK1566_HitachiSemiconductor.pdf

2SK1566 Datasheet Preview — Preview of 2SK1566 PDF

Datasheet Details

Part number:

2SK1566

Manufacturer:

Hitachi Semiconductor

File Size:

34.31 KB

Description:

Silicon N-Channel MOSFET

Features

* Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switching regulator and DC-DC converter Outline TO-220FM D G 1 2 3 1. Gate 2. Drain 3. Source S 2SK1566, 2SK1567 Absolute Maximum Ratings (Ta = 25°C)
