2SK1564 - N-Channel MOSFET Transistor

2SK1564 Description

isc N-Channel MOSFET Transistor .
Drain Current. ID=3A@ TC=25℃. Drain Source Voltage- : VDSS=800 (Min). Minimum Lot-to-Lot variations for robust device performance.

2SK1564 Applications

* Designed for high voltage, high speed power switching applications such as switching regulators, converters, solenoid and relay drivers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VDSS Drain-Source Voltage (VGS=0) VALUE UNI T 800 V VGS Gate-Source Voltage ±30 V ID Drain Curre

📥 Download Datasheet

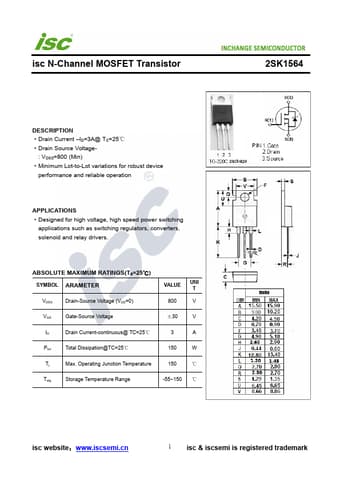

Preview of 2SK1564 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK1564
Manufacturer
Inchange Semiconductor
File Size
213.23 KB
Datasheet
2SK1564-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
