2SK1697 - Silicon N-Channel MOSFET

Hitachi Semiconductor

📥 Download Datasheet

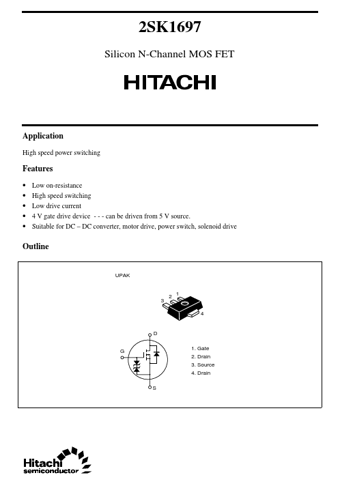

2SK1697 Datasheet Preview — Preview of 2SK1697 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK1697
Manufacturer	Hitachi Semiconductor
File Size	29.77 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK1697_HitachiSemiconductor.pdf

2SK1697 Product details

Features

Low on-resistance High speed switching Low drive current 4 V gate drive device - - - can be driven from 5 V source. Suitable for DC.
DC converter, motor drive, power switch, solenoid drive Outline UPAK 2 1 4 3 D G 1. Gate 2. Drain 3. Source 4. Drain S 2SK1697 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel diss.
