2SK973 - Silicon N-Channel MOSFET

Hitachi Semiconductor

2SK973 Datasheet Preview — Preview of 2SK973 PDF

Datasheet Details

Part number	2SK973
Manufacturer	Hitachi Semiconductor
File Size	78.18 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK973_HitachiSemiconductor.pdf

2SK973 Product details

Description

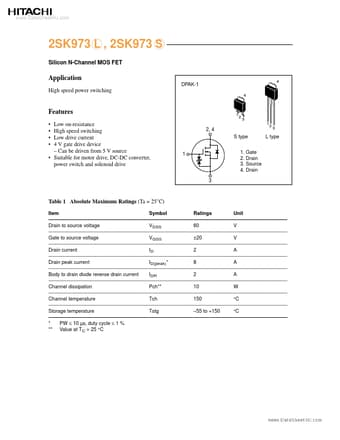

> www.DataSheet4U.com 2SK973 L , 2SK973 S Power vs.Temperature Derating 15 Channel Dissipation Pch (W) 50 30 Drain Current ID (A) 10 Maximum Safe Operation Area 10 5 t o in DS ( n R io at y er ed b p 1.0 O it lim s hi e ar a is 10 µs n) 10 3 PW 0 µs DC = 1 m s( 1 Op 10 s m Sh ot ) er ati on 0.3 0.1 Ta = 25°C (T C = 25 °C ) 0 50 100 150 0.05 0.1 Case Temperature TC (°C) 0.3 1.0 3 10 30 100 Drain to Source Voltage VDS (V) Ty

Features

Low on-resistance High speed switching Low drive current 4 V gate drive device.
Can be driven from 5 V source.
Suitable for motor drive, DC-DC converter, power switch and solenoid drive 2, 4 12 3 12 3 S type 1. Gate 2. Drain 3. Source 4. Drain 3 L type 1 Table 1 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel d.
