2SK973S Datasheet, Mosfet Transistor, Inchange Semiconductor

N-channel mosfet transistor

📥 Download PDF (286.40 KB)

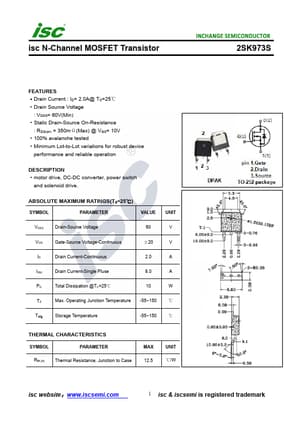

2SK973S Datasheet Preview Page 1 — Preview of 2SK973S Datasheet

PDF File Details

Part number:

2SK973S

Manufacturer:

Inchange Semiconductor

File Size:

286.40 KB

Download:

📄 Download the 2SK973S Datasheet PDF

Description:

N-channel mosfet transistor.
*motor drive, DC-DC converter, power switch
and solenoid drive.

ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

SYMBOL

PARAMETER

VALUE

UNIT

VDSS

Drain-Source Voltage

60

V

VGS

Gate-Source Voltage-Continuou.

✔ 2SK973S Features

Drain Current : ID= 2.0A@ TC=25℃
Drain Source Voltage : VDSS= 60V(Min)
Static Drain-Source On-Resistance : RDS(on) = 350mΩ(Max) @ VGS= 10V
100% avalanche tested
Mini

✔ 2SK973S Application

of our products. ISC products are intended for usage in general electronic equipment. The products are not d
