C1906 Datasheet - Hitachi Semiconductor

C1906 2SC1906

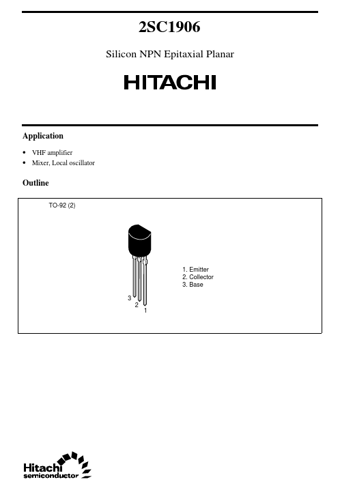

2SC1906 Silicon NPN Epitaxial Planar Application VHF amplifier Mixer, Local oscillator Outline TO-92 (2) 3 2 1 1. Emitter 2. Collector 3. Base 2SC1906 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Emitter current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC IE PC Tj Tstg Ratings 30 19 2 50 50 300 150 55 to +150.

C1906-HitachiSemiconductor.pdf
