C1923 - 2SC1923

Toshiba Semiconductor

C1923 Description

2SC1923 TOSHIBA Transistor Silicon NPN Epitaxial Planar Type (PCT process) 2SC1923 High Frequency Amplifier Applications FM, RF, MIX, IF Amplifier Ap.

C1923 Applications

* FM, RF, MIX, IF Amplifier Applications Unit: mm
* Small reverse transfer capacitance: Cre = 0.7 pF (typ. )
* Low noise figure: NF = 2.5dB (typ. ) (f = 100 MHz) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector curren

📥 Download Datasheet

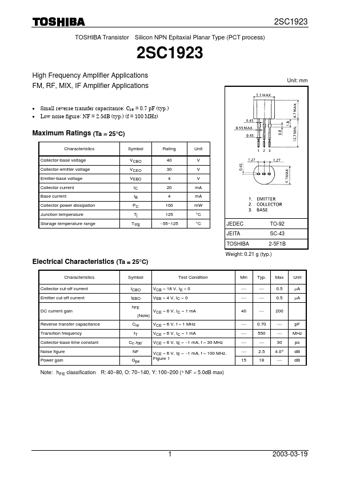

C1923 Datasheet Preview — Preview of C1923 PDF

Datasheet Details

Part number: C1923
Manufacturer: Toshiba ↗ Semiconductor
File Size: 278.81 KB
Datasheet: C1923-ToshibaSemiconductor.pdf
Description: 2SC1923
