C2736 Datasheet - Hitachi Semiconductor

C2736 - 2SC2736

2SC2736 Silicon NPN Epitaxial Application UHF/VHF frequency converter Local oscillator Outline MPAK 3 1 2 1.

Emitter 2.

Base 3.

Collector 2SC2736 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 30 20 3 50 150 150 55 to +150 Unit V V V mA mW °C °C Electrica

C2736 Features

* pan.

C2736-HitachiSemiconductor.pdf

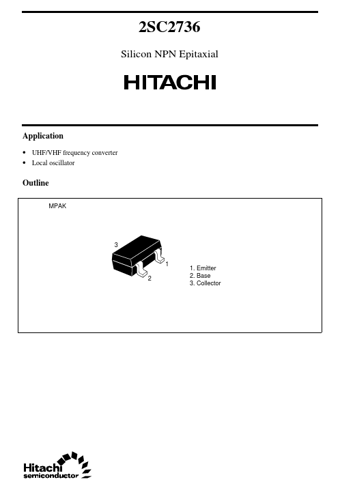

Preview of C2736 PDF
C2736 Datasheet Preview Page 2 C2736 Datasheet Preview Page 3

Datasheet Details

Part number:

C2736

Manufacturer:

Hitachi Semiconductor

File Size:

54.41 KB

Description:

2sc2736.
