HA12174 - Audio Signal Processor

This page provides the datasheet information for the HA12174, a member of the HA1 Audio Signal Processor family.

Datasheet Summary

Description

HA12173 series are silicon monolithic bipolar IC providing Dolby noise reduction system

, music sensor and PB equalizer system in one chip.

PB equalizer Dolby B/C-NR Music sensor × 2 channel × 2 channel × 1 channel

Features

  • Different type of PB equalizer characteristics selection (normal/chrome or metal) is available with fully electronic control switching built-in.
  • 2 type of input selection (RADIO/TAPE) is available.
  • Changeable to Forward, Reverse-mode for PB head with fully electronic control switching built-in.
  • Available to change music sensing level by external resistor.
  • Music sensing level selection is available with fully electronic control switching built-in.

📥 Download Datasheet

Datasheet preview – HA12174

Datasheet Details

Part number HA12174
Manufacturer Hitachi Semiconductor
File Size 1.09 MB
Description Audio Signal Processor
Datasheet download datasheet HA12174 Datasheet
Additional preview pages of the HA12174 datasheet.

📁 Similar Datasheet

  • HA1217 - (HA121x) Crystal Clock Oscillators (NEL Frequency)
  • HA1210 - (HA121x) Crystal Clock Oscillators (NEL Frequency)
  • HA1211 - (HA121x) Crystal Clock Oscillators (NEL Frequency)
  • HA1211 - FM IF Amplifier (Hitachi)
  • HA1215 - Crystal Clock Oscillators (NEL Frequency Controls)
  • HA12151MA - Dolby-B and C-Type Noise Reduction (Hitachi)
  • HA12153MA - Dolby-B and C-Type Noise Reduction (Hitachi)
  • HA12159 - FM IF System (Hitachi)
  • HA1219 - (HA121x) Crystal Clock Oscillators (NEL Frequency)
  • HA121A - (HA121x) Crystal Clock Oscillators (NEL Frequency)
Other Datasheets by Hitachi Semiconductor

Full PDF Text Transcription

Click to expand full text

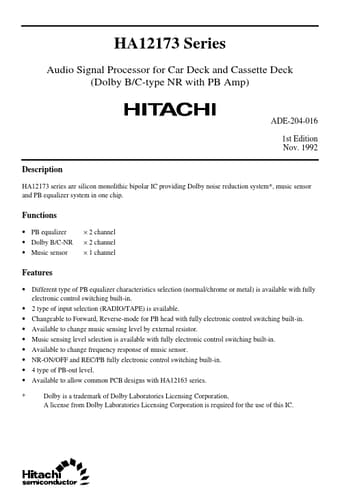

HA12173 Series Audio Signal Processor for Car Deck and Cassette Deck (Dolby B/C-type NR with PB Amp) ADE-204-016 1st Edition Nov. 1992 Description HA12173 series are silicon monolithic bipolar IC providing Dolby noise reduction system*, music sensor and PB equalizer system in one chip. Functions • PB equalizer • Dolby B/C-NR • Music sensor × 2 channel × 2 channel × 1 channel Features • Different type of PB equalizer characteristics selection (normal/chrome or metal) is available with fully electronic control switching built-in. • 2 type of input selection (RADIO/TAPE) is available. • Changeable to Forward, Reverse-mode for PB head with fully electronic control switching built-in. • Available to change music sensing level by external resistor.
