HA13631T - CD-ROM Combo Driver

Hitachi Semiconductor

Datasheet Details

Part number	HA13631T
Manufacturer	Hitachi Semiconductor
File Size	86.46 KB
Description	CD-ROM Combo Driver
Datasheet	HA13631T_HitachiSemiconductor.pdf

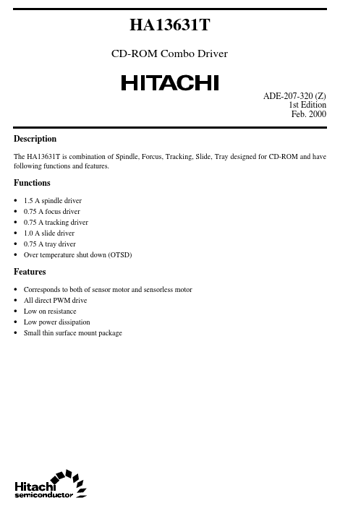

The HA13631T is combination of Spindle, Forcus, Tracking, Slide, Tray designed for CD-ROM and have following functions and

Functions.
1.5 A spindle driver 0.75 A focus driver 0.75 A tracking driver 1.0 A slide driver 0.75 A tray driver Over temperature shut down (OTSD) Features.
Corresponds to both of sensor motor and sensorless motor All direct PWM drive Low on resistance Low power dissipation Small thin surface mount package HA13631T Pin Arrangement ASGND SLDIN OP3IN OP4IN VSLD TRYIN SLDP SLDN SLDGND VTR.
