HD4043312, HD404339, (HD404339 Series) 4-bit HMCS400-Series microcomputer

www.DataSheet4U.com HD404339 Series Rev.7.0 Sept.1999 .

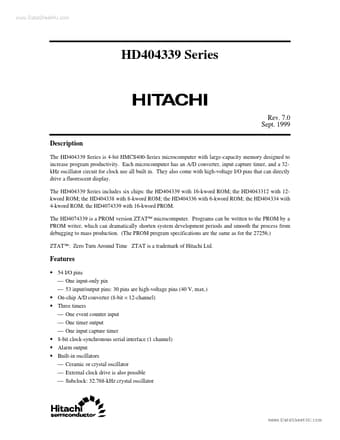

The HD404339 Series is 4-bit HMCS400-Series microcomputer with large-capacity memory designed to increase program productivity.

datasheet Preview Page 1 from Datasheet4u.com

HD404339_HitachiSemiconductor.pdf

HD4043312 Datasheet Preview — This datasheet PDF includes multiple part numbers: HD4043312, HD404339. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HD4043312, HD404339

Manufacturer:

Hitachi Semiconductor

File Size:

422.39 KB

Description:

(HD404339 Series) 4-bit HMCS400-Series microcomputer

Note:

This datasheet PDF includes multiple part numbers: HD4043312, HD404339.
Please refer to the document for exact specifications by model.

Features

* 54 I/O pins  One input-only pin  53 input/output pins: 30 pins are high-voltage pins (40 V, max. )
* On-chip A/D converter (8-bit × 12-channel)
* Three timers  One event counter input  One timer output  One input capture timer
* 8-bit clock-synchronous serial in

Applications

* Connect this pin to GND. Resets the MCU Input/output pin for the internal oscillator. Connect these pins to the ceramic or crystal oscillator, or OSC1 to an external oscillator circuit. OSC 2 X1 X2 Port D0
* D 13 15 17 18 34
* 47 9 11 12 28
* 41 O I O I/O Input/output pins add
