HD74ALVC162835A

18-bit Universal Bus Driver with 3-state Outputs

HD74ALVC162835A Features

* Supports PC133 and meets “PC SDRAM registered DIMM specification, Rev. 1.1”

* VCC = 2.3 V to 3.6 V

* Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)

* Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)

* High output current ±12 mA (@V CC =

HD74ALVC162835A General Description

The HD74ALVC162835A is an 18-bit universal bus driver designed for 2.3 V to 3.6 V VCC operation. Data flow from A to Y is controlled by the output enable (OE). The device operates in the transparent mode when the latch enable (LE) is high. When LE is low, the A data is latched if the clock (CLK) inp.

HD74ALVC162835A Datasheet (62.49 KB)

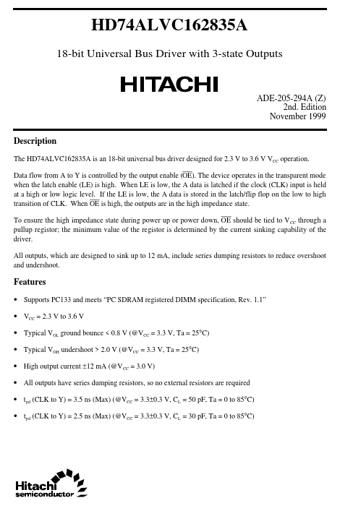

Preview of HD74ALVC162835A PDF

Datasheet Details

Part number:

HD74ALVC162835A

Manufacturer:

Hitachi Semiconductor

File Size:

62.49 KB

Description:

18-bit universal bus driver with 3-state outputs.
