HD74BC245A, Octal Bus Transceivers With 3 State Outputs

HD74BC245A Octal Bus Transceivers With 3 State Outputs ADE-205-008A (Z) Rev.1 March 1993 .
The HD74BC245A provides high drivability and operation equal to or better than high speed bipolar standard logic IC by using Bi-CMOS process.

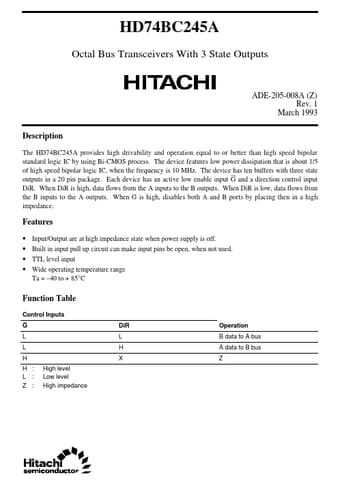

datasheet Preview Page 1 from Datasheet4u.com

HD74BC245A_HitachiSemiconductor.pdf

HD74BC245A Datasheet Preview — Preview of HD74BC245A PDF

Datasheet Details

Part number:

HD74BC245A

Manufacturer:

Hitachi Semiconductor

File Size:

42.38 KB

Description:

Octal Bus Transceivers With 3 State Outputs

Features

* low power dissipation that is about 1/5 of high speed bipolar logic IC, when the frequency is 10 MHz. The device has ten buffers with three state outputs in a 20 pin package. Each device has an active low enable input G and a direction control input DiR. When DiR is high, data flows from the A input
