HD74HC51 - AND-OR-INVERT Gate

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

HD74HC51 AND-OR-INVERT Gate by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – HD74HC51

Datasheet Details

Part number	HD74HC51
Manufacturer	Hitachi Semiconductor
File Size	46.58 KB
Description	AND-OR-INVERT Gate
Datasheet	HD74HC51 Datasheet

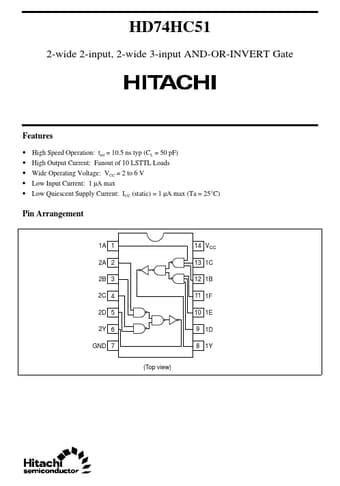

Additional preview pages of the HD74HC51 datasheet.

Product details

Features

High Speed Operation: tpd = 10.5 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 1 µA max (Ta = 25°C) Pin Arrangement 1A 1 2A 2 2B 3 2C 4 2D 5 2Y 6 GND 7 (Top view) 14 VCC 13 1C 12 1B 11 1F 10 1E 9 1D 8 1Y HD74HC51 DC Characteristics Ta = 25°C Item Input voltage Symbol VIH Ta =.
