HD74HC540 Datasheet, drivers equivalent, Hitachi Semiconductor

HD74HC540 Features

• Drivers
• High Speed Operation: tpd = 11.5 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6

PDF File Details

Part number:

HD74HC540

Manufacturer:

Hitachi Semiconductor

File Size:

51.48kb

Download:

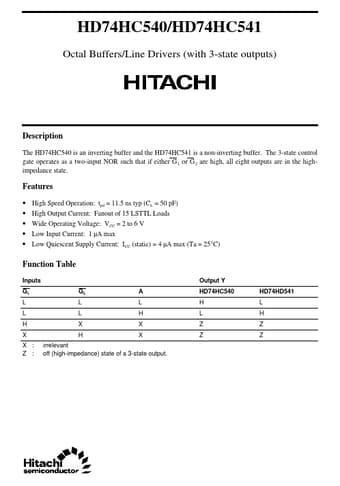

📄 Datasheet

Description:

Octal buffers/line drivers. The HD74HC540 is an inverting buffer and the HD74HC541 is a non-inverting buffer. The 3-state control gate operates as a two-input NO
