HD74LS240 Octal Buffers/Line Drivers/Line Receivers

Unit: mm 24.50 25.40 Max 20 11 7.00 Max 6.30 1 0.89 1.27 Max 10 1.30 2.54 Min 5.08 Max 7.62 0.51 Min 2.54 ± 0.25 0.48 ± 0.10 0.25 0.05 0° 15° + 0.11 Hitachi Code JEDEC EIAJ Weight (reference value) DP-20N Conforms 1.26 g Unit: mm 12.6 13 Max 20 11 1 10 5.5 0.80 Max 2.20 Max 0.22 ± 0.05 0.20 ± 0.04 0.20 7.80 + 0.30 1.15 1.27 0.42 ± 0.08 0.40 ± 0.06 0.10 ± 0.10 0° 8° 0.70 ± 0.20 0.15 0.12 M Dimension including.

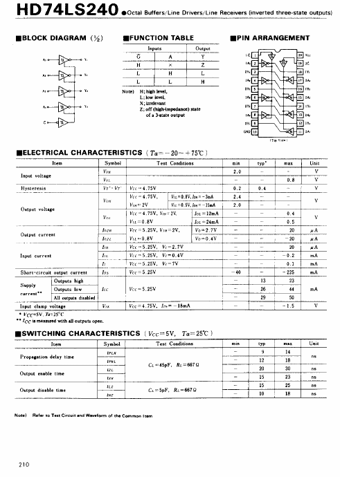

HD74LS240 Datasheet (53.17 KB)

Preview of HD74LS240 PDF
HD74LS240 Datasheet Preview Page 2 HD74LS240 Datasheet Preview Page 3

Datasheet Details

Part number:

HD74LS240

Manufacturer:

Hitachi Semiconductor

File Size:

53.17 KB

Description:

Octal buffers/line drivers/line receivers.
