HD74LS241P - Octal Buffers / Line Drivers / Line Receivers

This page provides the datasheet information for the HD74LS241P, a member of the HD74LS241 Octal Buffers / Line Drivers / Line Receivers family.

Datasheet Summary

Features

  • Ordering Information Part Name Package Type Package Code (Previous Code) Package Abbreviation HD74LS241P DILP-20 pin PRDP0020AC-B (DP-20NEV) P HD74LS241FPEL SOP-20 pin (JEITA) PRSP0020DD-B FP (FP-20DAV) Note: Please consult the sales office for the above package availability. Pin Arrangement REJ03D0460.
  • 0200 Rev.2.00 Feb.18.2005 Taping Abbreviation (Quantity).
  • EL (2,000 pcs/reel) 1G 1 1A1 2 2Y4 3 1A2 4 2Y3 5 1A3 6 2Y2 7 1A4 8 2Y1 9 GND 10 20 VCC 19 2G.

📥 Download Datasheet

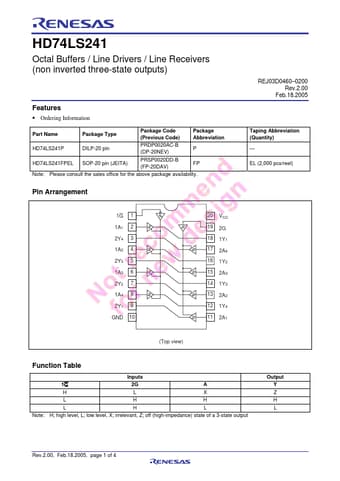

Datasheet preview – HD74LS241P
