HM6208H - High Speed CMOS Static RAM

Datasheet Summary

Description

Pin Name A0 A15 I/O1 I/O4 CS WE VCC VSS Function Address lnput/output Chip select Write enable Power supply Ground 2 HM6208H Series Block Diagram A14 A15 A0 A1 A2 A3 A4 A5 I/O1 I/O2 I/O3 I/O4 A13 A12 A11 A10 A9 A8 A7 A6 Input data control VCC Row decoder Memory array 256 × 1024 VS

Features

  • Single 5 V supply and high density 24-pin package.
  • High speed: Access time 25/35/45 ns (max).
  • Low power  Operation: 300 mW (typ)  Standby: 100 µW (typ) 30 µW (typ) (L-version).
  • Completely static memory required  No clock or timing strobe required.
  • Equal access and cycle time.
  • Directly TTL compatible: All inputs and outputs.
  • Battery backup operation capability (L-version) Ordering Information Type No. HM6208HP-25 HM6208HP-35 HM62.

📥 Download Datasheet

Datasheet preview – HM6208H

Datasheet Details

Part number HM6208H
Manufacturer Hitachi Semiconductor
File Size 89.79 KB
Description High Speed CMOS Static RAM
Datasheet download datasheet HM6208H Datasheet
Additional preview pages of the HM6208H datasheet.

📁 Similar Datasheet

  • HM6208 - 4 Bit CMOS Static RAM (Hitachi)
  • HM6203 - High Input Voltage LDO Linear Regulators (H&M semi)
  • HM6207 - ultra sensitive hall effect switch (H&M semi)
  • HM6207H - 256K High Speed SRAM (Hitachi)
  • HM621100A - 1048576 word / 1 Bit High Speed CMOS Static RAM (Hitachi)
  • HM6215 - Fast Transient Response LDO (H&M Semiconductor)
  • HM6216 - positive voltage regulators (H&M semi)
  • HM6216514I - 8M SRAM (Renesas)
  • HM6221 - High PSRR LDO (H&M Semiconductor)
  • HM62256 - 32768 word x 8-Bit High Speed CMOS Static RAM (Hitachi)
Other Datasheets by Hitachi Semiconductor
  • HM621400H - 4M High Speed SRAM (4-Mword x 1-bit)
  • HM621400HC - 4M High Speed SRAM (4-Mword x 1-bit)
  • HM6216255H - 4M high Speed SRAM (256-kword x 16-bit)
  • HM6216255HC - 4M High Speed SRAM (256-kword x 16-bit)
  • HM6216255HI - 4M high Speed SRAM (256-kword x 16-bit)
  • HM621664HB - 1M High Speed SRAM
  • HM62256A - 32/768-word x 8-bit High Speed CMOS Static RAM
  • HM62256B - 256k SRAM (32-kword x 8-bit)

Full PDF Text Transcription

Click to expand full text

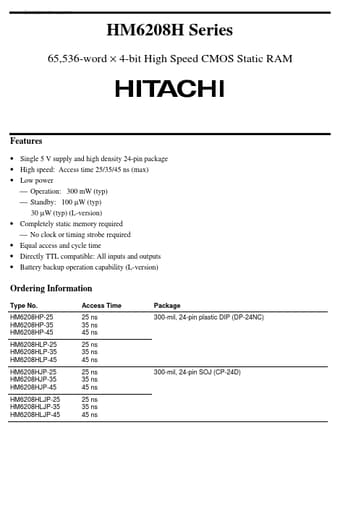

www.DataSheet4U.com HM6208H Series 65,536-word × 4-bit High Speed CMOS Static RAM Features • Single 5 V supply and high density 24-pin package • High speed: Access time 25/35/45 ns (max) • Low power  Operation: 300 mW (typ)  Standby: 100 µW (typ) 30 µW (typ) (L-version) • Completely static memory required  No clock or timing strobe required • Equal access and cycle time • Directly TTL compatible: All inputs and outputs • Battery backup operation capability (L-version) Ordering Information Type No.
