HM62W16255H Datasheet - Hitachi Semiconductor

4M High Speed SRAM (256-kword x 16-bit)

HM62W16255H Features

* Single 3.3 V supply: 3.3 V ± 0.3V

* Access time: 12/15 ns (max)

* Completely static memory  No clock or timing strobe required

* Equal access and cycle times

* Directly TTL compatible  All inputs and outputs

* Operating current: 180/160 mA (max)

HM62W16255H General Description

The HM62W16255H is a 4-Mbit high speed static RAM organized 256-kword × 16-bit. It has realized high speed access time by employing CMOS process (4-transistor + 2-poly resistor memory cell)and high speed circuit designing technology. It is most appropriate for the application which requires high spe.

HM62W16255H Datasheet (101.96 KB)

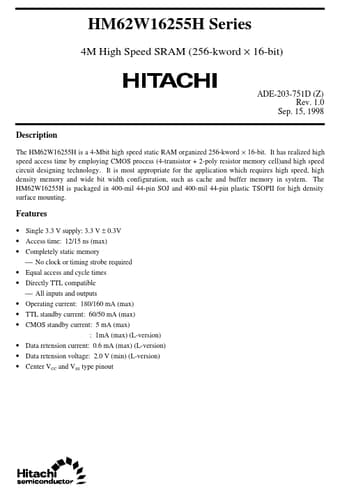

Preview of HM62W16255H PDF

Datasheet Details

Part number:

HM62W16255H

Manufacturer:

Hitachi Semiconductor

File Size:

101.96 KB

Description:

4m high speed sram (256-kword x 16-bit).
