HM62W16258B - 4 M SRAM (256-kword x 16-bit)

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

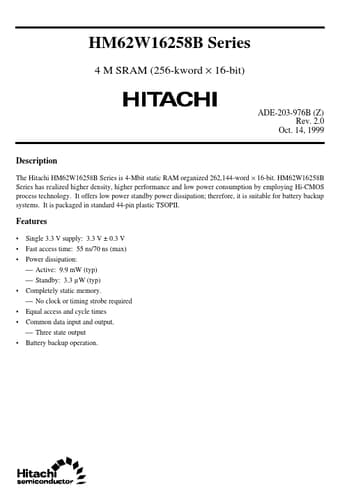

HM62W16258B 4 M SRAM (256-kword x 16-bit) by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – HM62W16258B

Datasheet Details

Part number	HM62W16258B
Manufacturer	Hitachi Semiconductor
File Size	76.29 KB
Description	4 M SRAM (256-kword x 16-bit)
Datasheet	HM62W16258B Datasheet
Additional preview pages of the HM62W16258B datasheet.

Product details

Description

The Hitachi HM62W16258B Series is 4-Mbit static RAM organized 262,144-word × 16-bit.

Features

Single 3.3 V supply: 3.3 V ± 0.3 V Fast access time: 55 ns/70 ns (max) Power dissipation:  Active: 9.9 mW (typ)  Standby: 3.3 µW (typ) Completely static memory.  No clock or timing strobe required Equal access and cycle times Common data input and output.  Three state output Battery backup operation.
HM62W16258B Series Ordering Information Type No. HM62W16258BLTT-5 HM62W16258BLTT-7 HM62W16258BLTT-5SL HM62W16258BLTT-7SL A.
