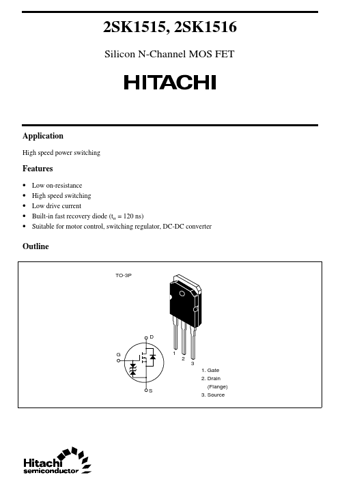

K1515 - 2SK1515

Hitachi Semiconductor

Datasheet Details

Low on-resistance.
High speed switching.
Low drive current.
Built-in fast recovery diode (trr = 120 ns).
Suitable for motor control, switching regulator, DC-DC converter Outline TO-3P D G1 2 3 1. Gate 2. Drain (Flange) S 3. Source 2SK1515, 2SK1516 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage 2SK1515 2SK1516 Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipa.
