2SK1918L, 2SK1918 - Silicon N-Channel MOSFET

2SK1918L Description

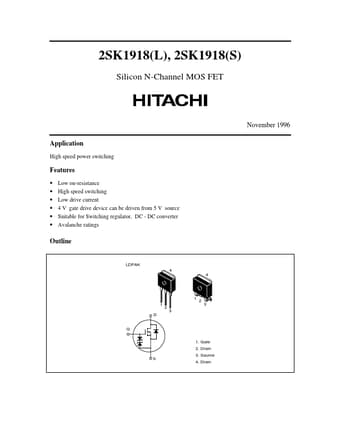

2SK1918(L), 2SK1918(S) Silicon N-Channel MOS FET Application High speed power switching .

2SK1918L Features

* Low on-resistance
* High speed switching
* Low drive current
* 4 V gate drive device can be driven from 5 V source
* Suitable for Switching regulator, DC - DC converter
* Avalanche ratings Outline LDPAK 4 4 123 D 12 3 G S 1. Gate 2. Drain 3. S

2SK1918L Applications

* based on the examples described herein. 5. No license is granted by implication or otherwise under any patents or other rights of any third party or Hitachi, Ltd. 6. MEDICAL APPLICATIONS: Hitachi’s products are not authorized for use in MEDICAL APPLICATIONS without the written consent of the appropr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SK1918L, 2SK1918. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK1918L, 2SK1918
Manufacturer
Hitachi
File Size
28.09 KB
Datasheet
2SK1918-Hitachi.pdf
Description
Silicon N-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: 2SK1918L, 2SK1918.
Please refer to the document for exact specifications by model.
