2SK1918S - Silicon N-Channel MOSFET

Product Overview

Hitachi

📥 Download Datasheet

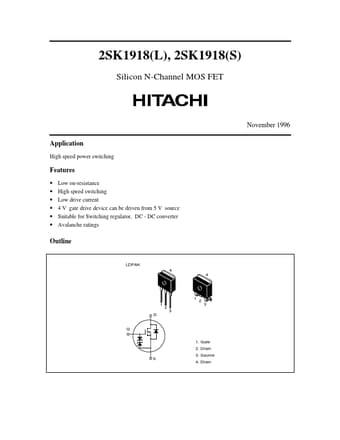

2SK1918S Silicon N-Channel MOSFET by Hitachi - Datasheet Preview — Datasheet preview – 2SK1918S

Datasheet Details

Part number	2SK1918S
Manufacturer	Hitachi
File Size	28.09 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK1918S Datasheet
Note	This datasheet PDF includes multiple part numbers: 2SK1918S, 2SK1918. Please refer to the document for exact specifications by model.
Additional preview pages of the 2SK1918S datasheet.

Product details

Features

Low on-resistance.
High speed switching.
Low drive current.
4 V gate drive device can be driven from 5 V source.
Suitable for Switching regulator, DC - DC converter.
Avalanche ratings Outline LDPAK 4 4 123 D 12 3 G S 1. Gate 2. Drain 3. Source 4. Drain November 1996 2SK1918(L), 2SK1918(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode re.
