B648A, B648 Datasheet - Hitachi

B648A - 2SB648

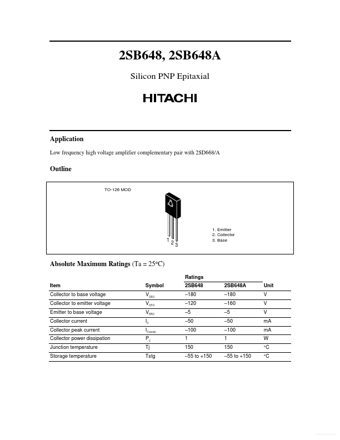

2SB648, 2SB648A Silicon PNP Epitaxial Application Low frequency high voltage amplifier complementary pair with 2SD668/A Outline TO-126 MOD 123 1.

Emitter 2.

Collector 3.

Base Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC IC(peak) PC Tj Tstg Ratings 2SB648 2SB648A Unit 1

B648-Hitachi.pdf

This datasheet PDF includes multiple part numbers: B648A, B648. Please refer to the document for exact specifications by model.
B648A Datasheet Preview Page 2 B648A Datasheet Preview Page 3

Datasheet Details

Part number:

B648A, B648

Manufacturer:

Hitachi

File Size:

42.72 KB

Description:

2sb648.

Note:

This datasheet PDF includes multiple part numbers: B648A, B648.
Please refer to the document for exact specifications by model.
