LM215 Datasheet - Hitachi

LM215 LCD

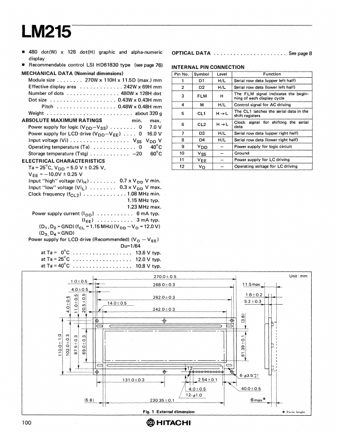

LM215 480 dot(W) x 128 dot(H) graphic and alpha-numeric display Recommendable control LSI HD61830 type (see page 76) MECHANICAL DATA (Nominal dimensions) Module size . . . . . . . . 270W x 110H x 11.5D (max.) mm Effective display area . . . . . . . . . . . . . 242W x 69H mm Number of dots 480W x 128H dot Dot size . . . . . . . . . . . . . . . . . . . . 0.43W x 0.43H mm Pitch 0.48W x 0.48H mm Weight . . . . . . . .
