HMC625LP5

GaAs MMIC 5-BIT DIGITAL PHASE SHIFTER

HMC625LP5 Features

* -13.5 to +18 Gain Control in 0.5 dB Steps High Output IP3: +33 dBm TTL/CMOS Compatible Serial or Parallel Control ±0.25 dB Typical Gain Step Error Single +5V Supply Compact 5x5mm SMT Package Functional Diagram General Description The HMC625LP5(E) is a digitally controlled variable gain amplifier w

HMC625LP5 General Description

The HMC625LP5(E) is a digitally controlled variable gain amplifier which operates from DC to 6 GHz, and can be programmed to provide anywhere from 13.5 dB attenuation, to 18 dB of gain, in 0.5 dB steps. The HMC625LP5(E) delivers noise figure of 6 dB in its maximum gain state, with output IP3 of up t.

HMC625LP5 Datasheet (547.27 KB)

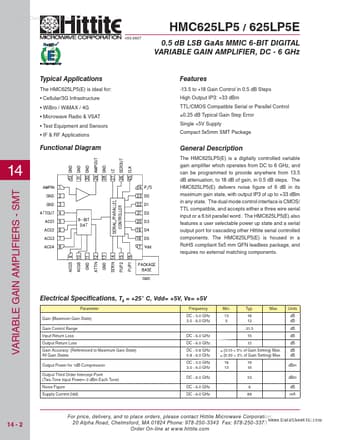

Preview of HMC625LP5 PDF

Datasheet Details

Part number:

HMC625LP5

Manufacturer:

Hittite Microwave Corporation

File Size:

547.27 KB

Description:

Gaas mmic 5-bit digital phase shifter.
www.DataSheet4U.com HMC625LP5 / 625LP5E v00.0607 0.5 dB LSB GaAs MMIC 6-BIT DIGITAL VARIABLE GAIN AMPLIFIER, DC - 6 GHz Typical Applications The HM.
