HI-3187

ARINC 429 DIFFERENTIAL LINE DRIVER

HI-3187 Features

* ! Low power CMOS ! TTL and CMOS compatible inputs ! Programmable output voltage swing ! Adjustable ARINC rise and fall times ! Plastic 14 & 16-pin thermally enhanced SOIC packages available ! Pin-for-Pin alternative for DEI/DDC/Intersil/Fairchild applications ! Operates at data rates up to 100 Kbits

HI-3187 General Description

The HI-3182, HI-3183, HI-3184, HI-3185, HI-3186, HI-3187 and HI-3188 bus interface products are silicon gate CMOS devices designed as a line driver in accordance with the ARINC 429 bus specifications. In addition to being functional upgrades of Holt's HI-8382 & HI-8383 products, they are also altern.

HI-3187 Datasheet (428.03 KB)

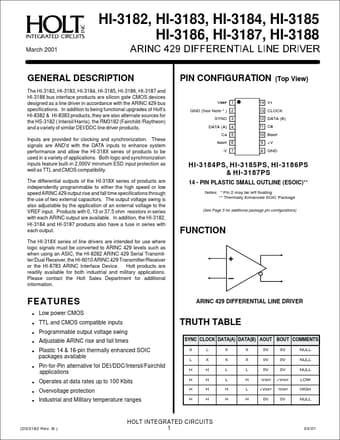

Preview of HI-3187 PDF

Datasheet Details

Part number:

HI-3187

Manufacturer:

Holt Integrated Circuits

File Size:

428.03 KB

Description:

Arinc 429 differential line driver.
