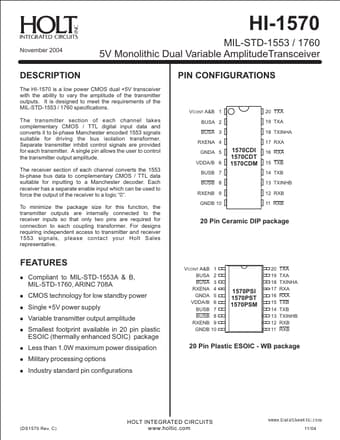

HI-1570 Datasheet, Amplitudetransceiver, Holt Integrated Circuits

HI-1570 Features

• Amplitudetransceiver ! ! ! ! ! ! ! ! Compliant to MIL-STD-1553A & B, MIL-STD-1760, ARINC 708A CMOS technology for low standby power Single +5V power supply Variable transmitter output amplitude Smallest foo

PDF File Details

Part number:

HI-1570

Manufacturer:

Holt Integrated Circuits

File Size:

80.52kb

Download:

📄 Datasheet

Description:

5v monolithic dual variable amplitudetransceiver. The HI-1570 is a low power CMOS dual +5V transceiver with the ability to vary the amplitude of the transmitter outputs. It is designe

HI-1570 Application

• Applications using a MIL-STD-1553 A/B data bus. The device produces a trapezoidal output waveform during transmission. TRANSMITTER Data input to the
