HI-1565 - 5V Monolithic Dual Transceivers

HOLT

The HI-1565 by HOLT is a 5V Monolithic Dual Transceivers. Below is the official datasheet preview.

📥 Download Datasheet

HI-1565 5V Monolithic Dual Transceivers by HOLT - Datasheet Preview — Official preview page of the **HI-1565** 5V Monolithic Dual Transceivers datasheet (HOLT).

Datasheet Details

Part number	HI-1565
Manufacturer	HOLT
File Size	488.15 KB
Description	5V Monolithic Dual Transceivers
Datasheet	HI-1565-HOLT.pdf

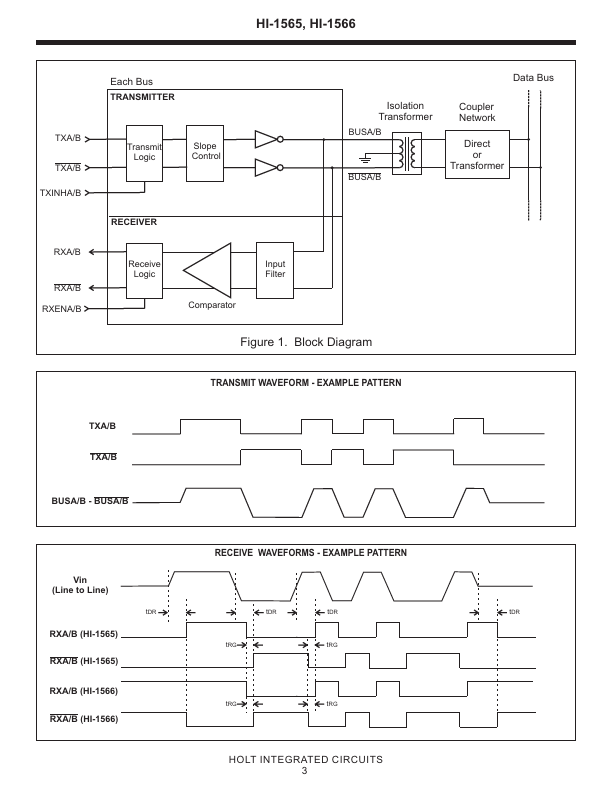

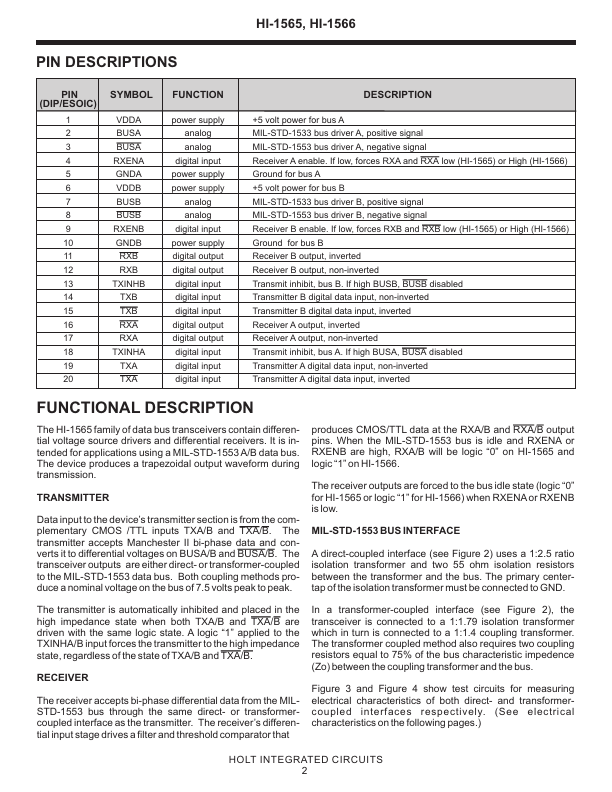

Additional preview pages of the HI-1565 datasheet.

HI-1565 Product details

Description

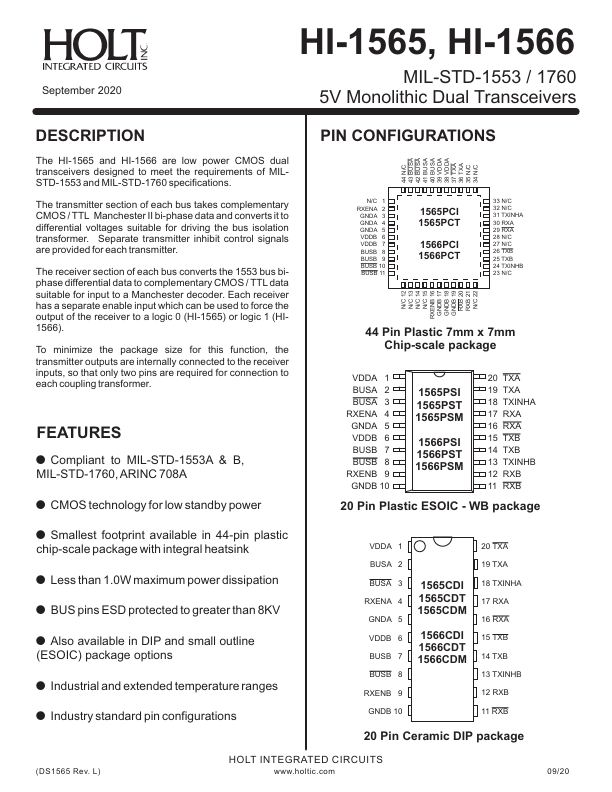

PIN CONFIGURATIONS 44 N/C 43 BUSA 42 BUSA 41 BUSA 40 BUSA 39 VDDA 38 VDDA 37 TXA 36 TXA 35 N/C 34 N/C The HI-1565 and HI-1566 are low power CMOS dual transceivers designed to meet the requirements of MILSTD-1553 and MIL-STD-1760 specifications.The transmitter section of each bus takes complementary CMOS / TTL Manchester II bi-phase data and converts it to differential voltages suitable for driving the bus isolation transformer.Separate transmitter inhibit control signals are provided for ea

Features

! Compliant to MIL-STD-1553A & B, MIL-STD-1760, ARINC 708A ! CMOS technology for low standby power N/C 1 RXENA 2 GNDA 3 GNDA 4 GNDA 5 VDDB 6 VDDB 7 BUSB 8 BUSB 9 BUSB 10 BUSB 11 1565PCI 1565PCT 1566PCI 1566PCT 33 N/C 32 N/C 31 TXINHA 30 RXA 29 RXA 28 N/C 27 N/C 26 TXB 25 TXB 24 TXINHB 23 N/C N/C 12 N/C 13 N/C 14 N/C 15 RXENB 16 GNDB 17 GNDB 18 GNDB 19 RXB 20 RXB 21 N/C 22 44 Pin Plastic 7mm x 7mm Chip-scale package VDDA 1 BUSA 2 BUSA 3 RXENA 4 GNDA 5 VDDB 6 BUSB 7 BUSB 8 RXENB 9 GNDB 10 1.
