HI-1568 Datasheet, Transceivers, HOLTIC

HI-1568 Features

• Transceivers ! Compliant to MIL-STD-1553A & B, MIL-STD-1760, ARINC 708A ! CMOS technology for low standby power ! Smallest footprint available in 44-pin plastic chip-scale package with integral heat

PDF File Details

Part number:

HI-1568

Manufacturer:

HOLTIC

File Size:

77.78kb

Download:

📄 Datasheet

Description:

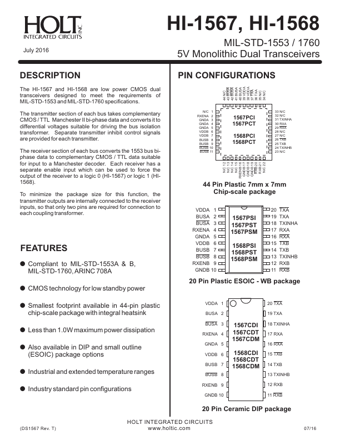

5v monolithic dual transceivers. PIN CONFIGURATIONS 44 N/C 43 BUSA 42 BUSA 41 BUSA 40 BUSA 39 VDDA 38 VDDA 37 TXA 36 TXA 35 N/C 34 N/C The HI-1567 and HI-1568 are

HI-1568 Application

• Applications using a MIL-STD-1553 A/B data bus. The device produces a trapezoidal output waveform during transmission. TRANSMITTER Data input to the
