HI-6110 MIL-STD-1553 / MIL-STD-1760 BC / RT / MT Message Processor

HI-6110 Description

HI-6110 November 2006 MIL-STD-1553 / MIL-STD-1760 BC / RT / MT Message Processor .
The HI-6110 is a CMOS integrated circuit implementing the MIL-STD-1553 (1553) data communications protocol between a host processor and a dual redunda.

HI-6110 Features

* Monolithic CMOS technology 3.3V operation Exceptionally low power On-chip message buffering Selectable master clock frequency Dual differential 1553 bus transceivers Bus Controller / Remote Terminal / Monitor Terminal operating mo

HI-6110 Applications

* MIL-STD-1553 Terminals Flight Control and Monitoring ECCM Interfaces Stores Management Test Equipment Sensor Interfaces Instrumentation PIN CONFIGURATION (Top View) 52 - STR 51 - VDDLOG 50 - RTAP 49 - RTA4 48 - RTA3 47 - RTA2 46

📥 Download Datasheet

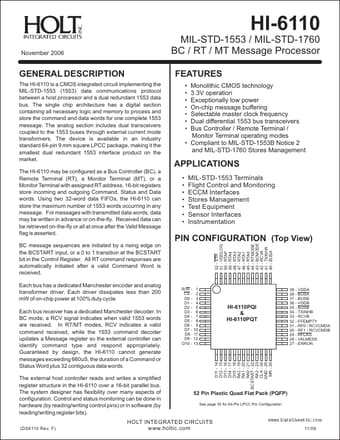

Preview of HI-6110 PDF
