HT1350

Step Counter

HT1350 Features

* Operating voltage: 1.5V Auto walking or jogging detection Step number/mileage/kilometer/calorie display LCD display

* An oscillator with 32kHz Few external components Low power consumption An LCD with 1/3 duty, 1/2 bias General Description The HT1350

HT1350 General Description

The HT1350 is a step counter IC implemented in the CMOS technology. It provides an LCD with a whole course (kilometer/mile) as well as the consumed calorie display. The HT1350 consists of internal oscillator circuit, a step number/kilometer/mile/calorie step counter, a voltage doubler, and an LCD di.

HT1350 Datasheet (83.76 KB)

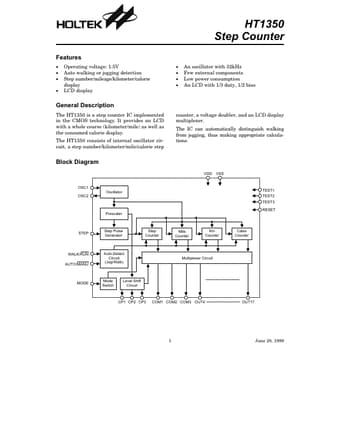

Preview of HT1350 PDF

Datasheet Details

Part number:

HT1350

Manufacturer:

Holtek Semiconductor Inc

File Size:

83.76 KB

Description:

Step counter.
