HT1381

Serial Timekeeper Chip

HT1381 Features

* Operating voltage: 2.0V~5.5V

* Maximum input serial clock: 500kHz at VDD=2V, 2MHz at VDD=5V

* Operating current: less than 1mA at 2V, less than 1.2mA at 5V

* TTL compatible - VIH: 2.0V~VDD+0.3V at VDD=5V - VIL: -0.3V~+0.8V at VDD=5V Applications

* Microcomputer serial clock

HT1381 General Description

The HT1380/HT1381 is a serial timekeeper IC which provides seconds, minutes, hours, day, date, month and year information. The number of days in each month and leap years are automatically adjusted. The HT1380/HT1381 is designed for low power consumption and can operate in two modes: one is the 12-h.

HT1381 Datasheet (120.11 KB)

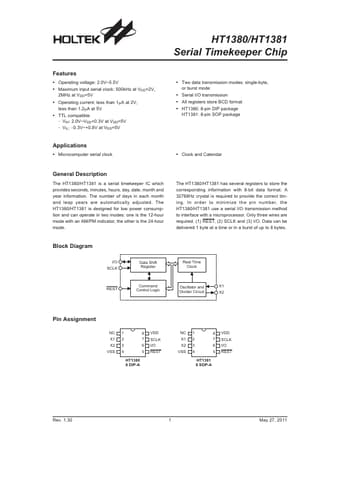

Preview of HT1381 PDF

Datasheet Details

Part number:

HT1381

Manufacturer:

Holtek Semiconductor Inc

File Size:

120.11 KB

Description:

Serial timekeeper chip.
