HT38A5 Datasheet - Holtek Semiconductor

12 Melody Music Generator

HT38A5 Features

* Operating voltage: 2.4V~5.0V

* Operating frequency: 8MHz

* Two operating mode MCU control mode key control

* Rang detect

* Hook

* Mono output

* High D/A converter resolution: 16 bits

* Polyphonic up to 8 notes

* 16-pin DIP, 20-pin SOP package mode

* Low vol

HT38A5 General Description

The HT38A5 is a CMOS VLSI designed for musical instruments, especially 12 melody songs. The HT38A5 is built-in with a controller and an WTS (Wave Table Synthesizer). The HT38A5 has applications in areas such as phone ringtones, high function toys, musical boxes, doorbells etc. Block Diagram 3 2 K ´.

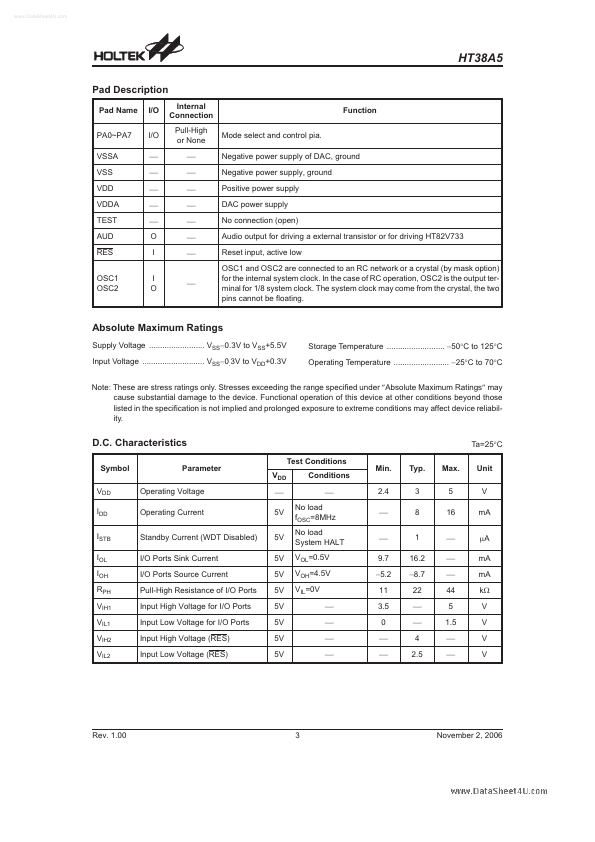

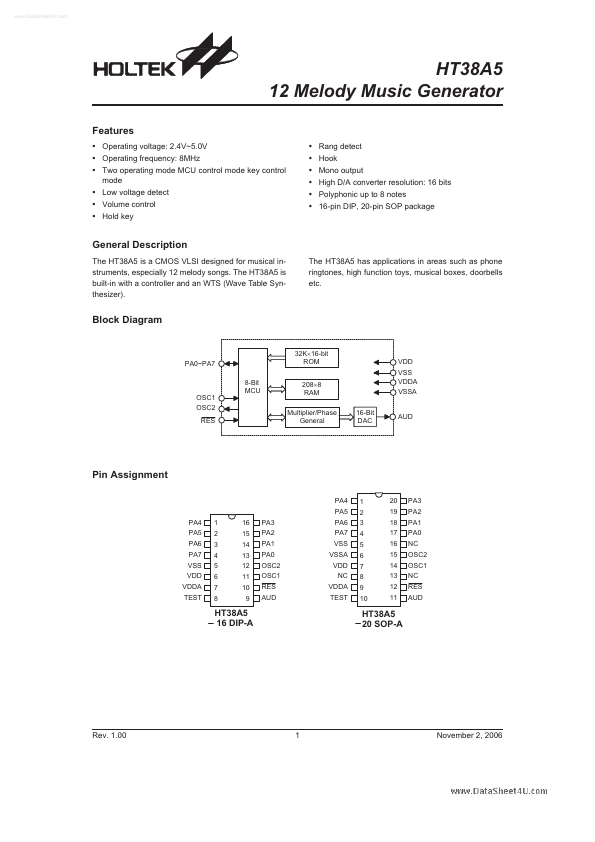

HT38A5 Datasheet (167.65 KB)

HT38A5 Datasheet Preview — Preview of HT38A5 PDF

Datasheet Details

Part number:

HT38A5

Manufacturer:

Holtek Semiconductor

File Size:

167.65 KB

Description:

12 melody music generator.
