HT3820 Datasheet - Holtek

128 Note Melody Generator

HT3820 Features

* Working voltage: 2.4V~5.0V 7 tempo options 2 "CHA" envelopes Normal or octave higher option 4 operation modes

* Extremely few external components Drive an 8Ω speaker through an NPN transistor 3-pin TO-92 or 16 DIP/SOP p

HT3820 General Description

The HT3820 series are single-chip 128 note melody generators implemented in CMOS technology. It can play a melody of 128 notes by trigger input or automatically when power is on. Customers’ melody sources are programmed by changing a masking layer during device fabrication. The HT3820 can play vario.

HT3820 Datasheet (230.76 KB)

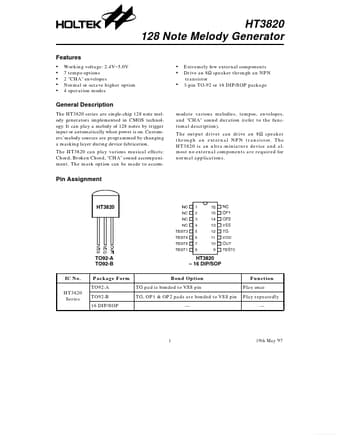

HT3820 Datasheet Preview — Preview of HT3820 PDF

Datasheet Details

Part number:

HT3820

Manufacturer:

Holtek

File Size:

230.76 KB

Description:

128 note melody generator.
