HT3421A

41 Matrix Key Multi-Function Piano

HT3421A Features

* Operating voltage: 2.4V~5V System operating frequency: 512KHz 12 × 7 matrix input keys Auto power-off Power ON/OFF toggle input 41 tones, tone area: G2~B5 8 rhythms

* 8

HT3421A General Description

The HT3421A is a 41-key musical instrument LSI implemented in the CMOS technology. The chip provides 8 rhythms, 8 timbres, 4 pulsatile sounds, 12 demo songs, and a 62-note memory storage function. The 12 × 7 matrix control keys of the HT3421A control both basic keys and function selection inputs. In.

HT3421A Datasheet (304.06 KB)

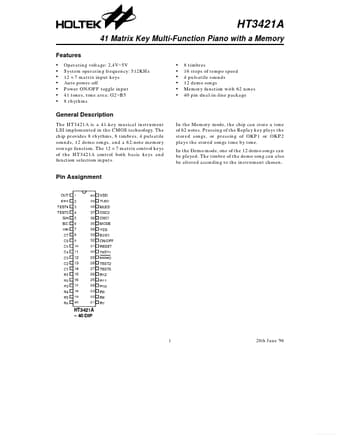

Preview of HT3421A PDF

Datasheet Details

Part number:

HT3421A

Manufacturer:

Holtek

File Size:

304.06 KB

Description:

41 matrix key multi-function piano.
