HT3401 Datasheet, Transistor, HOTCHIP

HT3401 Features

  • Transistor VDS(V)=-30V ID=-4.2A(VGS=-10V) RDS(ON)<50mΩ(VGS=-10V) RDS(ON)<65mΩ(VGS=-4.5V) RDS(ON)<120mΩ(VGS=-2.5V) Absolute Maximum Ratings (TA=25°C unless otherwise noted) Parameter Drain-Sourc

PDF File Details

Part number:

HT3401

Manufacturer:

HOTCHIP

File Size:

292.19kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode field effect transistor. The HT3401 uses advanced trench technology to Provide excellent RDS(ON),low gate change and Operation with gate voltages as low as 2.

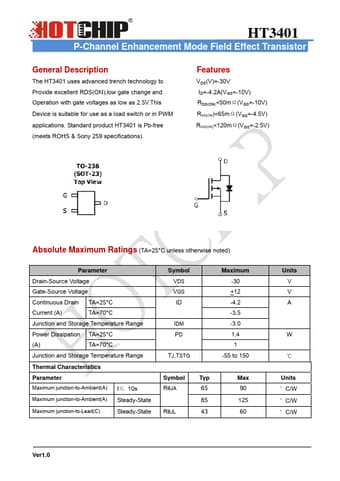

Datasheet Preview: HT3401 📥 Download PDF (292.19kb)
Page 2 of HT3401 Page 3 of HT3401

HT3401 Application

  • Applications Standard product HT3401 is Pb-free (meets ROHS & Sony 259 specifications). Features VDS(V)=-30V ID=-4.2A(VGS=-10V) RDS(ON)<50mΩ(VGS=-
