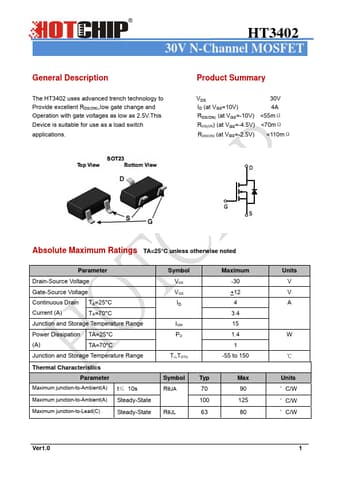

HT3402 Datasheet, Mosfet, HOTCHIP

PDF File Details

Part number:

HT3402

Manufacturer:

HOTCHIP

File Size:

271.62kb

Download:

📄 Datasheet

Description:

30v n-channel mosfet. The HT3402 uses advanced trench technology to Provide excellent RDS(ON),low gate change and Operation with gate voltages as low as 2.

HT3402 Application

• Applications Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS=-4.5V) RDS(ON) (at VGS=-2.5V) 30V 4A <55mΩ <70mΩ <110mΩ
