HT34118A Voice Switched Speakerphone Circuit

INTRODUCTION The fundamental difference between the operation of a speakerphone and a handset is that of half-duplex versus full-duplex. The handset is full duplex since conversation can occur in both directions (transmit and receive) simultaneousiy. A speakerphone has higher gain levels in both pa.

HT34118A Voice Switched Speakerphone Circuit The HT34118A Voice Switched Speakerphone Circuit incorporates the necessary amplifiers, attenuators, level detectors, and control algorithm to form the heart of a high quality hands-free speakerphone system. Included are a microphone amplifier with adjustable gain and MUTE control, Transmit and Receive attenuators which operate in a complementary manner, level detectors at both input and output of both attenuators, and background noise monito.

HT34118A Features

* of a featurephone. PIN ASSIGNMENT

* Improved Attenuator Gain Range: 52 dB Between Transmit and Receive

* Low Voltage Operation for Line-Powered Applications (3.06.5 V)

* 4 Point Signal Sensing for Improved Sensitivity

* Background Noise Monitors for Both Transmit an

HT34118A Datasheet (1.00 MB)

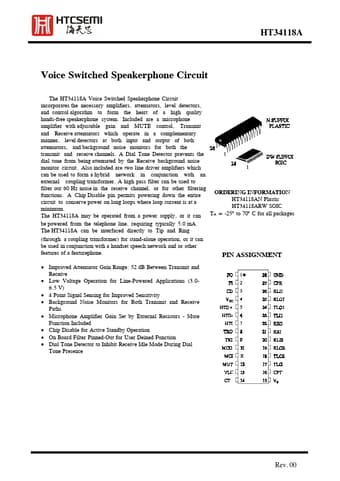

HT34118A Datasheet Preview — Preview of HT34118A PDF

Datasheet Details

Part number:

HT34118A

Manufacturer:

HTCSEMI

File Size:

1.00 MB

Description:

Voice switched speakerphone circuit.
