HT46801B-1 - (HT4xR01x-1) Small Package 8-Bit OTP MCU

Product Overview

Holtek Semiconductor

Datasheet Details

Part number	HT46801B-1
Manufacturer	Holtek Semiconductor
File Size	592.57 KB
Description	(HT4xR01x-1) Small Package 8-Bit OTP MCU
Datasheet	HT46801B-1 Datasheet
Note	This datasheet PDF includes multiple part numbers: HT46801B-1, HT46R01B-1. Please refer to the document for exact specifications by model.

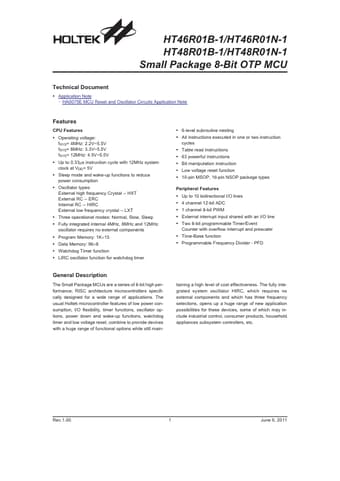

Additional preview pages of the HT46801B-1 datasheet.

Product details

Description

The Small Package MCUs are a series of 8-bit high performance, RISC architecture microcontrollers specifically designed for a wide range of applications.

Features

CPU Features.
Operating voltage:.
6-level subroutine nesting.
All instructions executed in one or two instruction fSYS= 4MHz: 2.2V~5.5V fSYS= 8MHz: 3.3V~5.5V fSYS= 12MHz: 4.5V~5.5V.
Up to 0.33ms instruction cycle with 12MHz system cycles.
Table read instructions.
63 powerful instructions.
Bit manipulation instruction.
Low voltage reset function.
10-pin MSOP, 16-pin NSOP package types clock at VDD= 5V.
Sleep mode and wake-up functions to reduce.
