HT46C62 - A/D with LCD Type 8-Bit MCU

Product Overview

Holtek Semiconductor

Datasheet Details

Part number	HT46C62
Manufacturer	Holtek Semiconductor
File Size	291.88 KB
Description	A/D with LCD Type 8-Bit MCU
Datasheet	HT46C62 Datasheet
Note	This datasheet PDF includes multiple part numbers: HT46C62, HT46R62. Please refer to the document for exact specifications by model.

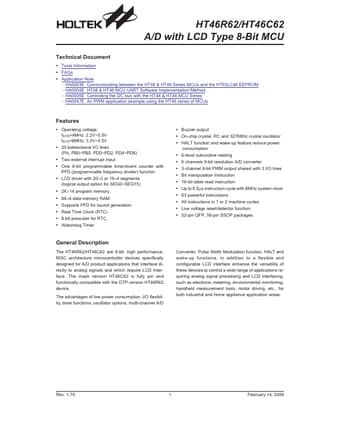

Additional preview pages of the HT46C62 datasheet.

Product details

Description

The HT46R62/HT46C62 are 8-bit, high performance, RISC architecture microcontroller devices specifically designed for A/D product applications that interface directly to analog signals and which require LCD Interface.

Features

Operating voltage:.
Watchdog Timer.
Buzzer output.
On-chip crystal, RC and 32768Hz crystal oscillator.
HALT function and wake-up feature reduce power fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V.
20 bidirectional I/O lines (PA, PB0~PB5, PD0~PD2, PD4~PD6).
Two external interrupt input.
One 8-bit programmable timer/event counter with consumption.
6-level subroutine nesting.
6 channels 9-bit resolution A/D converter.
3-channel 8-bit PWM output.
